Backend Components

For the backend infrastructure, the storage and API interfaces, we utilize Supabase, an open source Firebase alternative. It is made up of many services on top of a Postgres database.

supabase architecture

For deployment of Supabase, we utilized the community supabase kubernetes helm chart. The helm chart can be found in supabase-community/supabase-kubernetes. This helm chart allows for a cloud agnostic deployment as long as a Kubernetes cluster is available. This ensures that the cloud deployment is exactly the same as the local deployment.

See Official Supabase Documentation for more information about using supabase.

Pixi

We use a tool called Pixi to manage virtual environments and run tasks. You can find the various task and environment definitions within the pixi.toml file within the root directory of the repository.

Currently all of the backend tasks are defined in the backend environment. The individual tasks are defined in either backend and db features. This allows for a fine grained definitions for the feature dependencies.

Note that all dependencies defined in the pixi.toml file are retrieved from the conda-forge channel in the conda repository.

For anything not installed directly from the channel, you can install it manually with a task. For example, you see checkout the install-k3d task in the backend feature.

For more detailed information, we recommend reading the Pixi Documentation.

Docker Images

The images used for each of the services are as follows:

  • supabase/postgres
  • supabase/studio
  • supabase/gotrue
  • postgrest/postgrest
  • supabase/realtime
  • supabase/postgres-meta
  • supabase/storage-api
  • darthsim/imgproxy
  • kong
  • supabase/logflare
  • timberio/vector
  • supabase/edge-runtime
  • minio/minio

We've made a copy of these images within the UW-ThinkLab's Github Container Registry. This is to ensure that the images are available in the event that the original images are removed, or if we need to make changes to the images.

The github actions workflow for building and pushing the images can be found in .github/workflows/images.yaml and the images can be found in the Resilience Container Registry.

Helm Chart

A Helm chart is a collection of files that define and package resources for a Kubernetes cluster as an application. As mentioned earlier, we utilize the community supabase kubernetes helm chart for deployment of Supabase. Currently we've set up a git submodule to the helm chart repository in the vendors directory. You can simple fetch this submodule by running the following task with pixi:

pixi run -e backend fetch-supabase-chart

Once you've fetched the submodule, you should now be able to see the full supabase-kubernetes repository in the vendors directory.

Helm Chart Values

The deployment values for the helm chart can be found in the yaml files found in the deployment directory.

The values are separated into two files:

values.dev.yaml: This is the values file for the development environment.

You can use this file to deploy the backend services to a local kubernetes cluster. It does contains unencrypted secrets and should not be used in production.

values.cloud.yaml: This is the values file for the production environment.

You can use this file to deploy the backend services to a production kubernetes cluster, whether it be on the cloud or on-premises. It contains encrypted secrets and can be used in production.

Editing values.cloud.yaml (Optional)

The values.cloud.yaml has been encrypted using a tool called SOPS: Secrets OPerationS. This allows us to fully encrypt the secrets in the file and only decrypt them when we need to edit or use them.

To open the file with VSCode, run the following first

export EDITOR="code --wait"

Then run the following. Save and close the file when you're done editing for all of your new values to be re-encrypted.

pixi run edit-cloud-values

If you run into an issue like gpg: decryption failed: Inappropriate ioctl for device, run the following command and retry

export GPG_TTY=$(tty)

Python package

Since the underlying database for Supabase is Postgres, we are able to utilize Object Relational Mapping (ORM) to define the database schema.

We use the sqlmodel package to define the database schema. SQLModel is a library that combines the power of SQLAlchemy and Pydantic.

The python package that defines the database schema can be found in the src/support_sphere_py directory.

The package is structured as follows:

.
├── src
│   └── support_sphere
│       ├── apis
│       ├── models
│       │   ├── auth
│       │   ├── enums
│       │   └── public
│       ├── repositories
│       │   ├── auth
│       │   └── public
│       ├── scripts
│       │   └── resources
│       │       └── data
│       └── services
└── tests

src/support_sphere:

  • models: This directory contains the ORM models for the database, and is further divided into subdirectories for each schema.
  • repositories: This directory contains the repository classes for the models, which allows for CRUD operations.
  • scripts: This directory contains scripts for direct database operations, such as loading data.
  • services: This directory contains any services that need to interact with the database.
    • resources/data: This directory contains any data files to be loaded into the database.
  • apis: This directory contains the API directory for fastapi routes (not implemented).

tests: This directory contains any tests for the package.

Running locally

To run this app locally, follow these steps:

  1. Install Pixi

  2. In the package's directory, run the following to install backend tools

    # install backend tools
pixi run -e backend install-tools
    2. Run the Docker daemon 3. Set up the infrastructure. You should have a Supabase instance running at http://localhost
    pixi run -e backend setup-infra
    After the setup, when prompted to log in, enter your Supabase project credentials (Username and Password) for successful authentication. The credentials can be found in deployment/values.dev.yaml. 4. Optional: If you want to add sample entries in your local Supabase Instance. Run the following command in a new terminal session.
    pixi run -e backend setup-db-data-via-k8s-job

Database diagram

Date generated: 11/25/2024

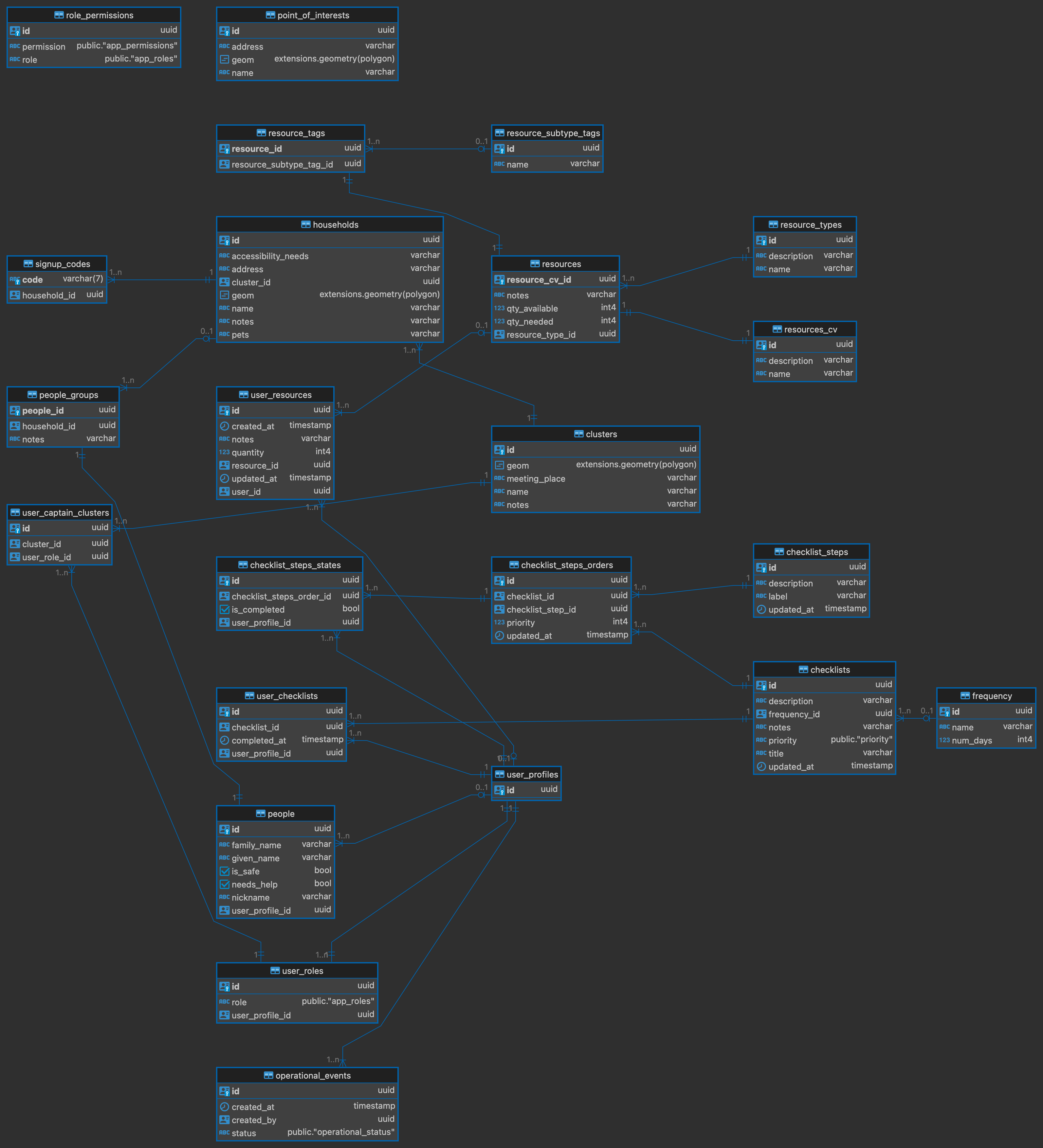

database diagram
